DC Power - Rectifiers

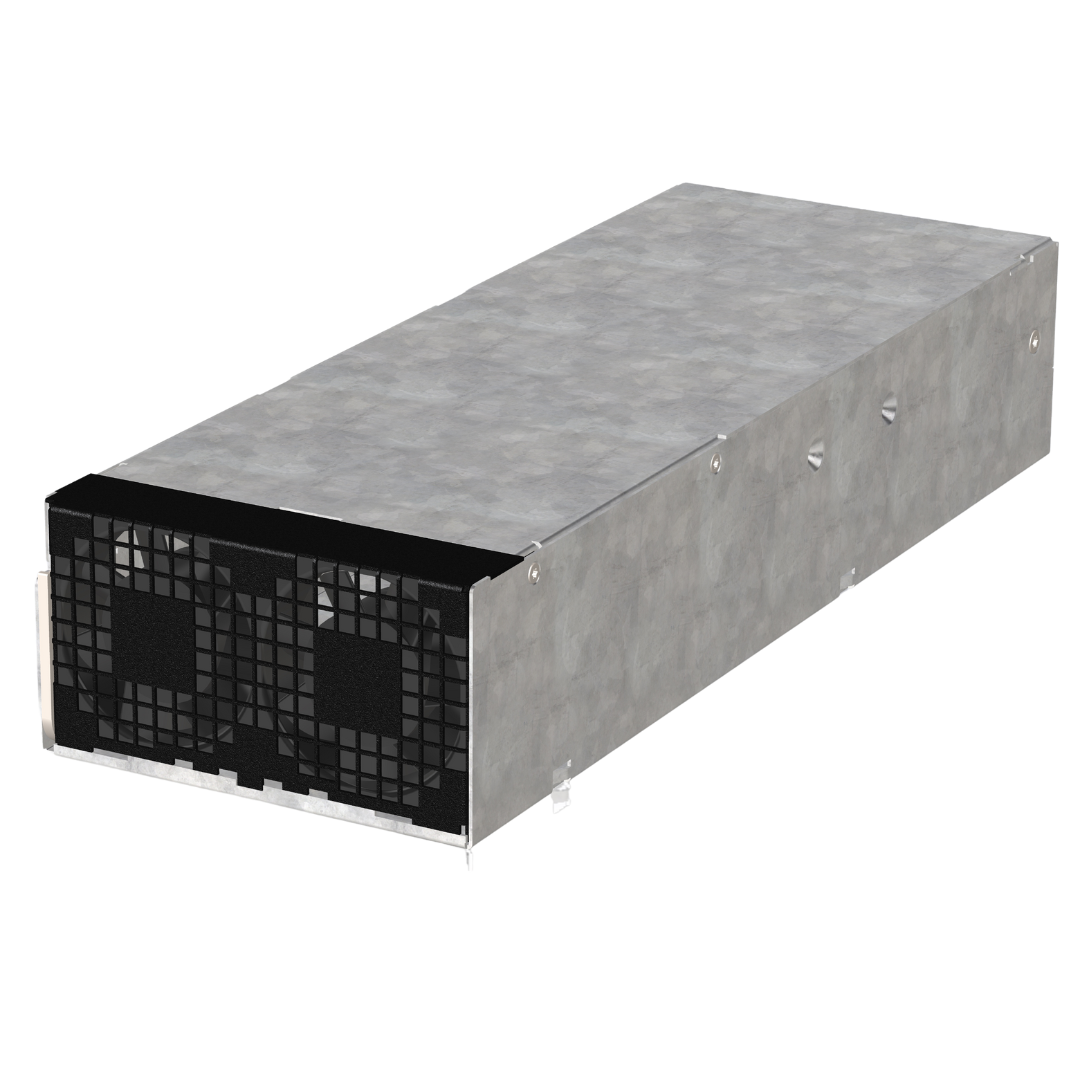

CAR3084TP

Contact us

Datasheet

Electrical

  • Input Voltage: 100 to 240Vac
  • Input Frequency: 50 or 60 Hz
  • Power factor: 0.99%
  • Max Input Current: 18.5A @180Vac / 3000W
  • Efficiency: 90% typical @ high mains
  • Output voltage: 68 to 86Vdc
  • Output power:
    • 3000W @ high mains
    • 1300W @ low mains
  • Output current:
    • 35A nominal @ high mains
    • 15.5A nominal @ low mains

Features

  • Indicators:
    • Green permanent : Normal condition
    • Green blinking 2Hz : Power derated
    • Green blinking 1Hz : CAN bus failure
    • Red permanent : DC output not OK
    • Red blinking : heavy fault
  • Protections:
    • Mains out of range
    • Output overvoltage
    • Output overload
    • Short circuit current
    • Smart power derating
    • Thermal shutdown
    • Hot swap

Mechanical

  • Dimensions:
    • mm: 128H (3U) x 69W x 325D
    • inches: 5H x 2.7W x 14.4D
  • Weight: 3.5kg

Environmental

  • Temperature:
    • Standard: -20 to 55°C
    • Extended: -40 to 70°C
    • De-rated output power: -2%/°C above 55°C
    • Storage: -40 to 85°C
  • Humidity:
    • Operating: 20 to 80% RH non-condensing
    • Storage: 10 to 95% RH non-condensing
  • Elevation: Up to 2000m
  • Cooling: Fan cooled (front to rear)

Standards

  • Safety: CE marked
  • Environment: RoHS compliant

Standard Part Numbers

9411 013 07031
