DC Power - Rectifiers

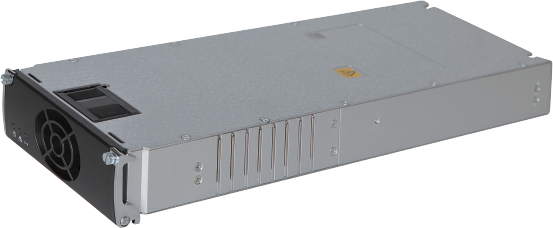

ECOR3048TN

Contact us

Summary

  • 96.2% efficiency
  • DC ouput power: 3000W
  • Large temperature range (from -40°C to 75°C)
  • Wide AC input range (85 to 300Vac)
  • Wide DC input range (MPPT)
  • Compatible with Compas and UCC

Description

ECOR3048TN is a rectifier module and also a Solar MPPT module. It is specially designed for telecom, network access and data center applications.

As rectifier module it can work with outstanding reliability, efficiency and power density.
As Solar module it is an isolated DC/DC converter which has the MPPT function.

The module can be identified as Rectifier or Solar automatically by input voltage.

This rectifier is compatible with the UCC and Compas for creating a solution.

Datasheet

Electrical

  • Input - Rectifier Mode:
    • Input Voltage Standard: 85 to 300Vac
    • Input Voltage Nominal: 220Vac
    • Input Frequency: 45 to 66Hz
    • Power factor: >0.99%
    • Input Current: <15Arms @ 220Vac
    • Input Current: <19Arms @ 176Vac
    • THDi: <5%
  • Input - MPPT Mode:
    • Input Voltage Standard: 85 to 440VDC
    • Input Voltage Nominal: 220VDC
    • MPPT efficiency: >99%
  • Input protection: 6kVA lightning protection
  • Output voltage: 42 to 58Vdc
  • Output power:  3000W nominal
  • Max Output current: 65.5A at 48VDC
  • Output protection:
    • 59Vdc Overvoltage shutdown
    • Short circuit proof
    • Output Fuse
  • Static voltage regulation: <0.5%
  • Dynamic voltage regulation: <5% for 10%~90% load
  • Regulation time: <50ms
  • Ripple: <150mV peak to peak
  • Psophometric: <2mV
  • Current Sharing: <5%
  • Hold up time: >10ms
  • Startup Time: 3-8s
  • Efficiency: 96.2%
  • MTBF: >300,000 hours, telcordia SR-332

Features

  • High efficiency:  96.2%
  • High power density : 33.43W/in3
  • MPPT efficiency: higher than 99%
  • Digital control : Digital primary and secondary control, realize excellent monitoring and regulation.
  • High reliability design: One fan front-to-back air flow with latest thermal solution and experienced design.
  • Disconnect mains: when hazardous input ECOR3048TN disconnect mains to protect itself when it can not sustain the input voltage.
  • Excellent EMC performance: Lower interference and excellent susceptibility give module better compatibility.
  • Global approvals: CE and UL certified

Mechanical

  • Dimensions:
    • mm: 41.4H (1U) x 108W x 327.2D
  • Weight: 2.2kg

Environmental

  • Temperature:
    • Operation: -40 to 75°C
    • Full Nominal Output Power: -40 to 55°C
    • Storage: -40 to 85°C
  • Humidity:  <95% RH non-condensing
  • Elevation: Up to 4000m
  • IP Level: IP20
  • Cooling: Fan cooled (front to rear)

Standards

  • Safety:
    • IEC60950-1
    • UL60950-1
    • EN60950-1
  • Environment:
    • ETSI EN 300 019-2(-1,-2,-3)
    • ETSI EN 300 132-2
    • Telcordia NEBS GR63 CORE Zone 4
    • RoHS compliant
  • EMC:
    • EN55022 ClassB(emission)
    • IEC61000-3-2
    • IEC61000-3-3
    • IEC61000-4-2(electrostatic discharge)
    • IEC61000-4-3(radiated immunity)
    • IEC61000-4-4(EFT)
    • IEC61000-4-5(surge immunity)
    • IEC61000-4-6(conducted immunity)
    • IEC61000-4-8
    • IEC61000-4-11

Standard Part Numbers

  • 9440 102 80165
