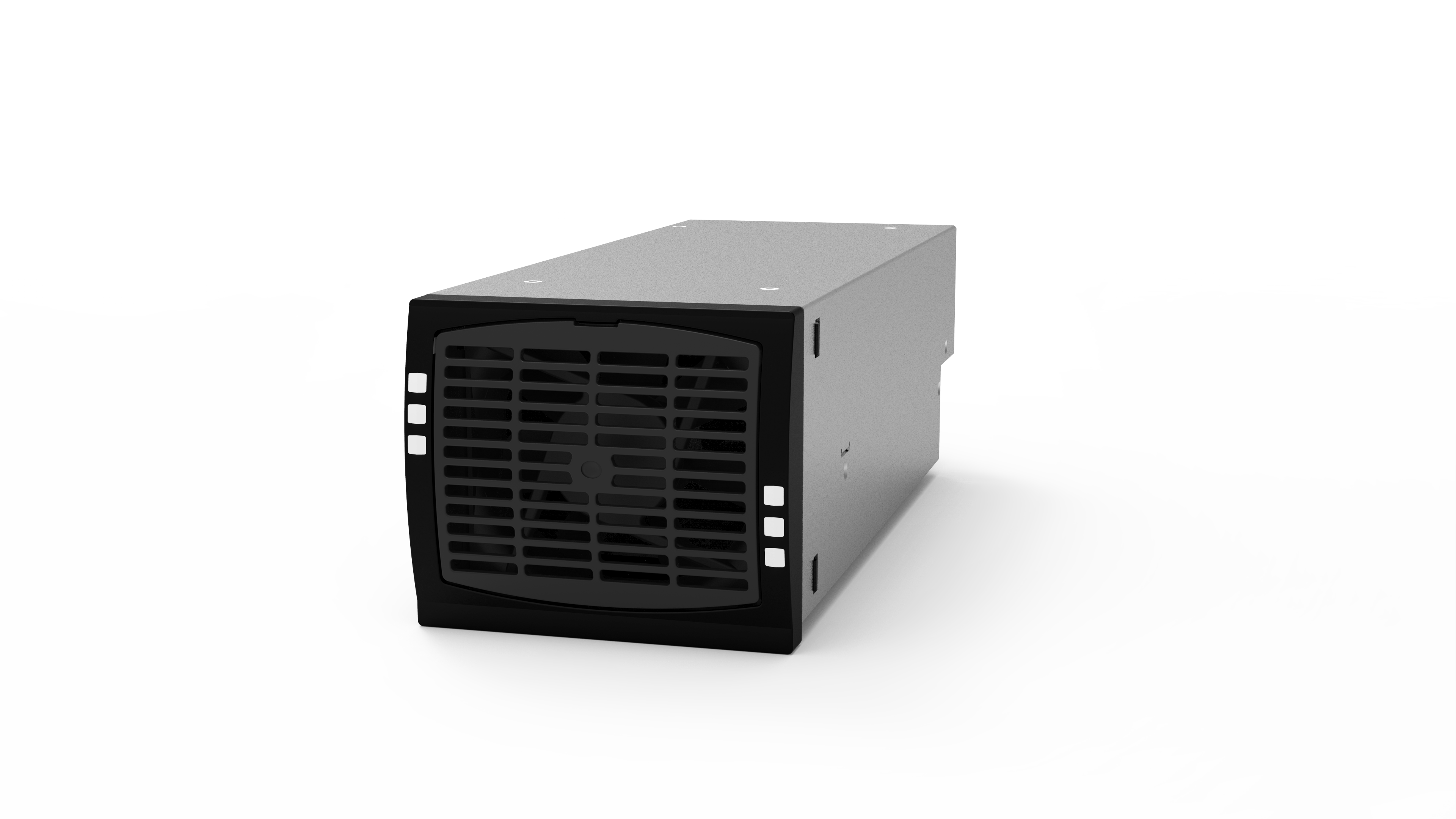

Inverter Module 2500W

Contact us

Summary

  • Revolutionary technology offers 94% efficiency and Telecom-grade reliability
  • Hot swappable 2.5kVA/2kW AC power module allows optimal scalability and flexibility
  • Separate AC and DC inputs provide application flexibility, reduced total cost of ownership and increased system reliability
  • Up to 4 high power density modules per inverter shelf
  • Dual Input Sources (AC & DC) with wide AC input range 150Vac to 265Vac
  •  Available Nominal DC Inputs : 24V (1200W), 48V, 60V, 110V, 220V
  • Compact Design
  • Up to 10kVA in 2U
  • Up to 225kVA in 3 enclosures of 75kVA each
  • Supported by Compas

Description

Alpha Inverter Module 2500 provides pure sine wave power to critical loads despite power disturbances such as harmonics, surges, glitches, voltage fluctuations, etc. Unlike traditional inverters, the Alpha Inverter features AC-AC conversion that double filters and isolates the AC input, and static switching for disturbance free transfers between input sources. The overall efficiency is increased to 94% without compromising the quality and stability of the output wave form. The compact size enables the delivery of 2.5kVA/2kW of AC power in limited space. The modular design allows gradually incrementing system capacity as the load demands increase.



Datasheet

Electrical

  • AC Output:
    • Power rating: 2500VA/2000W
    • Waveform: Pure sine wave
    • Efficiency: 91-95.5% depending on conditions
    • Transfer time: Zero transfer time
    • Nominal voltage: 230Vac 1P or 3P
    • Voltage accuracy: ±2%
    • Frequency: 50-60Hz (same as input frequency)
    • Frequency accuracy: 0.03%
    • THD (resistive load): <1.5%
    • Transient load recovery time: 0.4 ms
    • Soft start time: 20s
    • Maximum crest factor at nominal power: 3.5
    • Short circuit overload capacity: 10 x In for 20msec (AC-to-AC mode)
    • Short term overload capacity: 150% for 5 seconds
    • Permanent overload capacity: 110%
  • AC Input:
    • Nominal AC voltage: 230Vac 1P or 3P
    • AC voltage range: 150 – 265Vac
    • Input power factor: >99%
    • Synchronization range: 50Hz (47-53) or  60Hz (57-63)
  • DC Input:
    • Nominal DC voltage: 48Vdc (or 24, 48, 60 110V depending on model)
    • Maximum DC voltage range (max): 40 – 60Vdc (user adjustable)
    • Voltage ripple: <2mV/<38dbrnc
  • MTBF: >230,000hrs

Mechanical

  • Dimensions:
    • mm: 88.9H x 102W x435D
    • inches: 3.5H x 4W x 17.13D
  • Weight: 5kg (11lbs)

Environmental

  • Temperature:
    • Operating: -20 to 50°C
    • Storage: -40 to 70°C
  • Relative humidity:Up to 95%, non-condensing
  • Operating altitude: Up to 1500m (4900ft) above sea level
  • Heat Dissipation:
    • 437BTU per hour in AC-to-AC mode;
    • 758BTU per hour in DC-to-AC mode

Standards

  • Safety:  UL 60950
  • Immunity: EN 61000-4
  • Emissions: EN 55022 (Class A)
  • RoHS: Compliant

Standard Part Numbers

  • Bravo: Inverter Module 2500W

Related Items
