Remote Power Feeding - Splitter

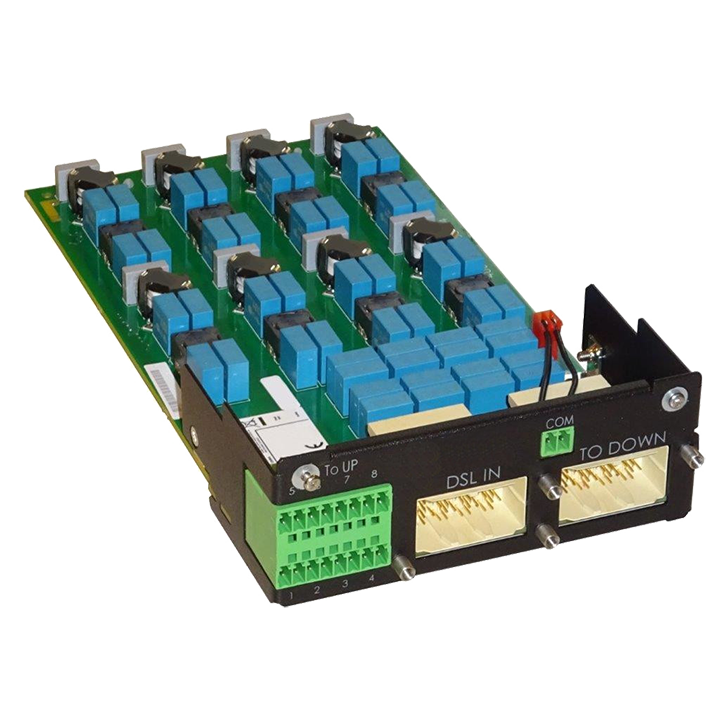

RLP Splitter Module

Contact us

Summary

  • To be used in combination with Remote Up Converters Solutions

Description

The RLP splitter module (9413 001 72101) combines the power (delivered by the RFT-C UP converters remote powering units) with the DSL data (from telecom equipment).
It manages up to 16 DSL pairs (with 8 pairs combining remote power with DSL, among the 16 input DSL pairs).
Up to 4 RLP splitter modules can equip one splitter shelf (9413 001 72001).
It collects also the specific pair coming from the Down side and dedicated to communicate data about the status of the remote).

Datasheet

Electrical

  • DC-port to Line-port : DC serie resistance <6ohms
  • DC current (port to Line) : 60mA max
  • DC voltage : 350V max on DC-port and Line-port

Features

  • Insertion Loss
    • DC-port ot Line-Port (1-8):
      • 200Hz-2kHz : >-3dB
    • DSL-port to Line-Port (1-16):
      •  32kHz-50kHz : >-2dB
      • 50kHz-30Mhz: >-0.5dB
  • Stopband attenuation: on request
  • Return loss against 100ohm: on request
  • X-talk: on request

Mechanical

  • Dimensions:
    • mm: 42.5H x 111.4W x 212D
  • Weight:
    • Module: 275g


Environmental

  • Temperature:
    • Operaing - Forced Air: -40 to 70°C
    • Storage: -25 to 55°C (ETSI 300019-2-1 Class 2.1)
    • Transportation: -40 to 70°C (ETSI 300019-2-2 Class 2.3)
  • Humidity:
    • Operating: 20 to 90% RH non-condensing
    • Storage: 10 to 95% RH non-condensing
  • Elevation: Up to 3000m

Standards

  • Safety:
    • CE marked
    • IEC 60950-1 / 60950-21
  • Emission:
    • EN61000-6-3-2007 EN55022: Limit B
  • Immunity Generic
    • EN61000-6-1-2007
    • IUT-T K44/K45
  • Immunity Enclosure
    • Radiated RF: EN6100-4-3 - ETS 300 386 V1.6.1 Level A
    • ESD: EN 61000-4-2 - ETS 300 386 V1.6.1 Level B
  • Input pairs/signal pairs:
    • Surge/Lighting: IUT-T K.44/K.45 Basic Level
    • Power Induction: IUT-T K.44/K.45 Basic Level
    • Power Contact: IUT-T K.44/K.45 Basic Level

Standard Part Numbers

  • 9413 001 72101: 1U Splitter RLP for DSL
