Remote Power Feeding - Splitter

RLP Splitter Shelf

Contact us

Summary

  • Subrack for up to 4 RLP splitter modules
  • To be used in combination with Remote Up Converters Solutions

Description

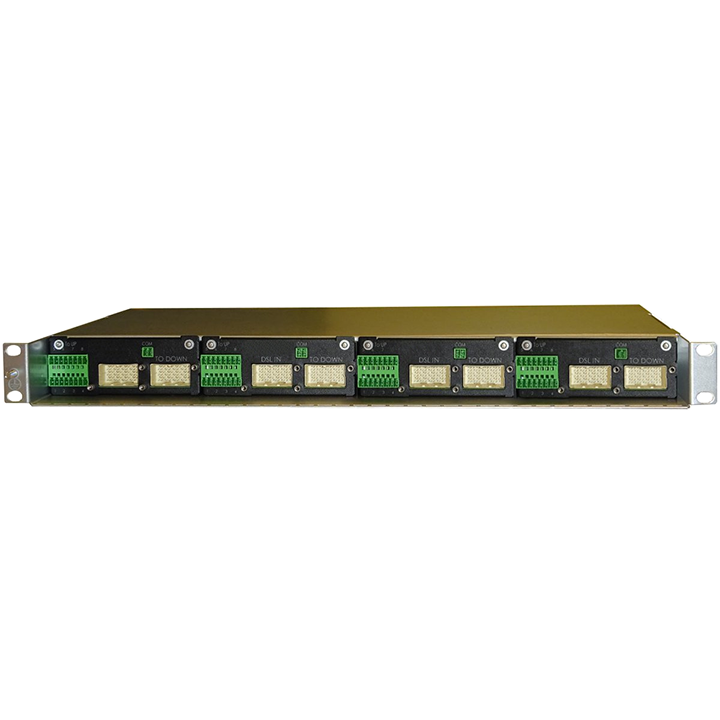

The 1U Splitter RLP shelf (9413 001 72001) can host up to 4 RLP splitter modules.
It is designed to be used in combination with a RLP up converter shelf.
The RLP splitter module (9413 001 72101) combines the power (delivered by the UP converters) with the DSL data (from telecom equipment). One module is managing 16 DSL pairs (with 8 pairs combining remote power with DSL among the 16 input DSL pairs).
Up to 4 splitter modules 9413 001 72101 (or blind plates 4004 118 35101) can be mounted, fastened by  2 captive screws M2.5 (per module). Holes in front of the base plate of the shelf may be used to retain the cables after plug in.
A M5 stud is foreseen to connect the chassis to protective earth.

Datasheet

Electrical

  • See RLP module

Features

  • See RLP module

Mechanical

  • Dimensions:
    • mm: 43.7H x 483.5W x 256.8D
  • Weight:
    • Subrack without module: 2300g
    • Module: 275g

Environmental

  • Temperature:
    • Operaing - Forced Air: -40 to 70°C
    • Storage: -25 to 55°C (ETSI 300019-2-1 Class 2.1)
    • Transportation: -40 to 70°C (ETSI 300019-2-2 Class 2.3)
  • Humidity:
    • Operating: 20 to 90% RH non-condensing
    • Storage: 10 to 95% RH non-condensing
  • Elevation: Up to 3000m

Standards

  • See RLP module

Standard Part Numbers

  • 9413 001 72001: Subrack for up to 4 RLP DSL splitter module

Related Items

  • Remote Power Feeding - Up Converter
  • CP053Remote Feeding Central Up Converter
  • CES48Remote Feeding Central Up Converter
