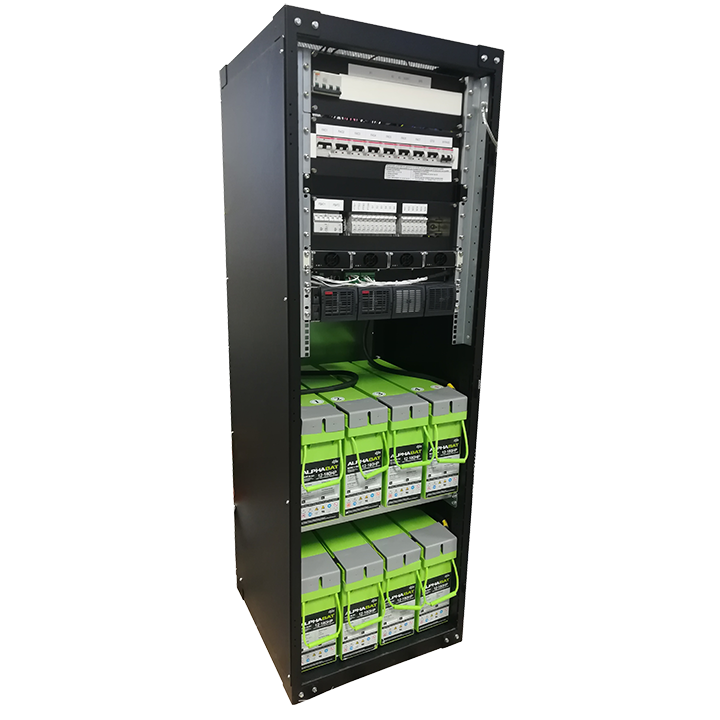

SP138/71

Contact us

Summary

  • 12KW enclosure
  • Modular Rectifiers ECOR3048TN (up to 12kW)
  • Modular Inverters Media (up to 6kVA)
  • Compas Monitoring with UCC
  • 2 battery strings

Description

The SP138/71 is a flexible -48V DC and 230V AC system based on years of experience and expertise in development to meet the customer needs. The system incorporates the energy efficient rectifier and inverter modules, advanced controller, Intelligent load distribution, and batteries.

The 3000 watts rectifiers provide efficiency levels up to 96% and reduce heat and energy loss.  Compact and scalable MEDIA inverters provide a pure supply of AC power. Unlike traditional inverters, the MEDIA features an AC to AC conversion process, that double filters the output wave form assuring high efficiency without any compromise in quality or stability. The system encompasses locations for four hot-pluggable rectifiers and four hot-pluggable inverters.

The system is equipped with an embedded monitoring unit offering all essential functions with battery management functions and even a communication card for remote control through TCP/IP. The communication offers unrivalled functions supporting XML, SNMP, webserver, FTP, all in compliancy with international standards.

Delivered with a temperature sensor, the system features voltage compensation in regard to the battery temperature, protection against deep discharge, battery charge current limitation and regular capacity testing.

The distribution DC section supports up to 40x circuit breakers (1-150A), configured for load or battery breaker, with or without BLVD (battery low voltage disconnect) and LLVD (load low voltage disconnect) depending on site and application requirements. The distribution AC section supports up to 7x circuit breakers (2-63A), configured for load.



Datasheet

Electrical

  • System
  • DC Capacity: 250A
  • AC Capacity: 6kVA
  • AC Power Distribution:
    • 1x B-16A-30mA/2P
    • 5x B-16A/2P
    • 1x B-6A/2P
  • DC Power Distribution:
    • BLVD : 6x MCB 40A/1P
    • LLVD: 6x MCB 40A/1P
  • Battery MCB: 2x 125A/1P
  • Rectifier: ECOR3048TN
  • Input Voltage: 85 to 300VAC (Nominal 220VAC)
  • Input Frequency: 45 to 66Hz
  • Input Current (per module):
    • @220VAC : <15Arms
    • @176VAC : <19Arms
  • Efficiency: 96.2%
  • Power output : 3000W
  • Output Voltage: 42 to 58 VDC (Nominal 53.5VDC)
  • Current output (per module): 62.5A @ 48VDC
  • Inverter : Media
  • Input Voltage:
    • 40 to 60 VDC
    • 150 to 265 VAC
  • Input current (per module): 34A
  • Input Frequency: 50 – 60Hz
  • Efficiency:
    • 96% (AC to AC)
    • 91% (DC to AC)
  • Power output (per module): 1500VA - 1200W
  • Output Voltage: 230/240VAC
  • Current output (per module): 6.6A @ 240VAC

Features

  • High reliability: extremely low failure rates ensure safe operation and low total cost of ownership
  • Plug-and-play: add rectifiers or inverters without changing the settings and making adjustments; no system interruption
  • High end controller: real time remote site supervision
  • High efficiency: 95%
  • Compact system:  one cabinet can house both inverter and rectifier modules, AC and DC distribution units, and batteries in some configurations.
  • Communication: CANBus / Ethernet / USB / ModBus / SNMP / RS232 / RS485 (See compas/UCC for more information)

Mechanical

  • Dimensions : 1800H x 600W x 600D (mm)
  • Weight : 125Kg (Without battery)

Environmental

  • Temperature:
    • Standard: -25 to 50°C (-4 to 131°F)
    • Extended (de-rated): -40 to 70°C (-40 to 158°F)
  • Storage: -40 to 70°C (-40 to 158°F)
  • Humidity:
    • Operating: 20 to 80% RH non-condensing
    • Storage: 10 to 95% RH non-condensing
  • Elevation: Up to 2000m (8200ft)
  • Cooling:
    • Rectifier: Fan cooled (front to rear)
    • Inverter: Fan cooled (front to rear)
    • System: Fan less

Standard Part Numbers

  • 9413 001 38711: DC and AC BACKUP CABINET 12KW
